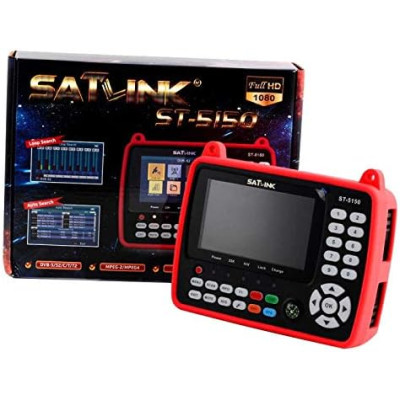

SATLINK ST5150 HD Combo DVB-S2 + DVB-T2 + DVB-C H.265

The Satlink ST-5150 is a combined gauge for all areas. DVB-S / S2 signals can be measured such as DVB-T / T2 (H.265) and DVB-C.

Signal strength and quality (MER) are displayed as numerical readings and bar chart.

Like other readings, it determines the signal-to-noise ratio (C/N) and the error rate in the bits (BER). In addition, the image quality can also be checked on the 11cm high resolution TFT LCD screen.

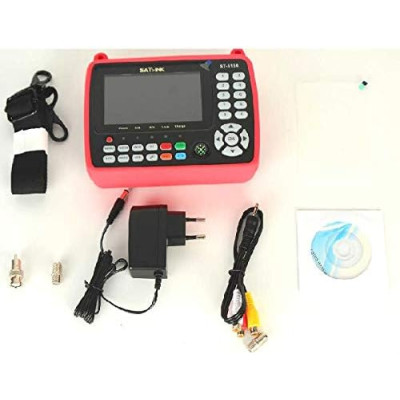

Included is a rubber protective cover, a plug-in power supply, a 12V connection cable, an AV cable (3.5 mm jack to 3 x RCA) and 2 x F-plugs (screws in HF/ANT measuring sockets). In order to quickly align a satellite antenna to the desired satellite, many satellites are pre-programmed. A station list for Astra 19.2 is already seen on the device in advance

Features:

Digital meter for DVB-S / S2, DVB-T / T2 (H.265) and DVB-C

Loop search for all areas

Display of signal power optionally in dBµV, dBm or dBmV.

4.3 inch TFT LCD display.

HDMI 1.4 connection (for external monitor) - OSD menu in colour

A/V outputs: 3.5mm jack (via AV cable), HDMI Ver 1.4

Analog video input and 12V power test of CCT cameras.

Quick start of the system.

Easy to use.

List of chains depending on the area or fully visible.

Snap into place quickly

Measurement of: level, C/N, BER, sea

Switchable, acoustic snap-in and level signal.

DiSEqC 1.0, 1.1, 1.2, USALS

Unicable 1.0 & 1.1

LNB power supply: 13 / 18 V, 0 / 22 kHz.

LNB short circuit protection.
