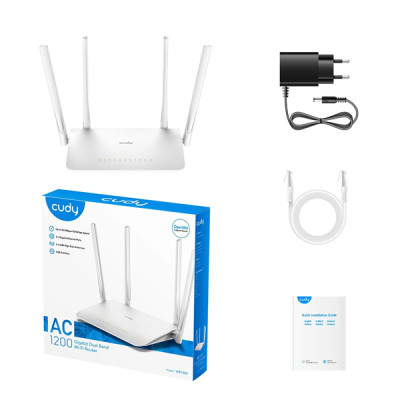

Cudy AC1200 Wi-Fi Router
Cudy AC1200 Wi-Fi Router
-21%
Model Version | WR1200 2.0 | ||
|---|---|---|---|
| CPU | CPU Details | 580 MHz Single-Core, MIPS24KEC | |
| Memory/Storage | Flash/ROM | 8 MB (64 Mbit ) NOR | |
| DDR/RAM | 64 MB (512 Mbit) DDR2 | ||
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps | |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | ||
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | ||
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | ||
| Wi-Fi Antennas | 4× Fixed | ||
| Beamforming | True | ||
| Range Performance | Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. | ||
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') | ||
| Interfaces | 10/100 Mbps RJ45 Ports | 5 | |
| Ethernet Notes | 1× WAN port, the rest are LAN ports | ||
| LED |
| ||
| Physical Buttons |
| ||
| Power Input | DC Jack | ||
| Power | Power Methods | DC | |
| DC Input | 12V 1A | ||
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC | ||
| Reliability | Environment |
| |
| Certifications | FCC, CE | ||
| Mechanical | Installation |
| |
| Dimension | 220×135×30 mm 8.66×5.31×1.18 inches | ||
| Product Weight |
| ||
| Package Content |
| ||
| Ordering Information | Retail Package Weight |
| |
| Retail Package Dimension | 290×250×64 mm 11.42×9.84×2.52 inches | ||
| Units per Carton | 16 | ||
| Carton Dimension | 53.8×51.6×31.3 cm 21.18×20.31×12.32 inches | ||
| Carton Gross Weight |
| ||
| Carton Net Weight |
| ||
