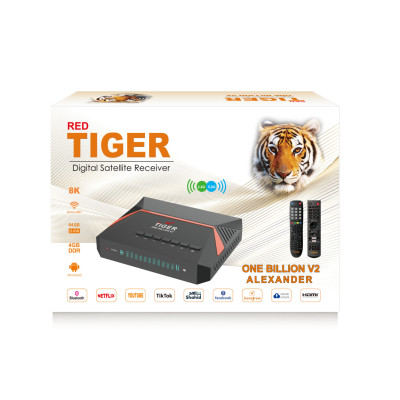

TIGER ONE BILLON ALEXANDER V2 8k

S905X3

CPU Sub-system ;

- Quad core ARM Cortex-A55 up to 1.9 GHz CPU.

- ARM G31 MP2 GPU.

- Concurrent multi-core processing.

- ARMv8-A architecture with Neon and Crypto extensions.

- Unified system L3 cache.

- Build-in Cortex-M4Optional core for always on processing.

- Build-in Cortex-M3 core for system control processing.

- Advanced TrustZone security system.

----------------------------------------------------

Supports ; CA.

----------------------------------------------------

Standards ;

- DVB-S: ETSI EN 300 421.

- DVB-S2: ETSI EN 302 307 and ETSI TR 102376.

- DVB-S2X: ETSI EN 302 307-2 V1.1.

----------------------------------------------------

Frequency Range ;

- 950~2150MHz for DVB-S/S2/S2X basebanddemodulator.

----------------------------------------------------

Symbol Rates ;

- 1 Msps to 45 Msps QPSK, 8PSK, 8APSK-L,16APSK(-L): up to45Msps;32APSK(-L): up to 38 Msps.

----------------------------------------------------

Forward errorcorrection rate ;

1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9and 9/10.

----------------------------------------------------

Features ;

- VCM(ACM) / CCM supported.

- Multiple stream process.

- Symbol rate sweeping.

- Auto spectrum inversion.

- DVB-S2X/DVB-S2/DVB-S auto identification.

----------------------------------------------------

DC power ;

 12V/1.5A.

----------------------------------------------------

Graphics Processor ;

Video/Picture Decoding ;

- VP9 Profile-2 up to 8Kx4K@24fps.

- H.265 HEVC MP-10@L5.1 up to 8Kx4K@24fps.

- AVS2-P2 Profile up to 4K@60fps.

- H.264 AVC HP@L5.1 up to 4Kx@30fps.

- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496).

- WMV/VC-1 SP/MP/AP up to 1080P@60fps.

- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps.

- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818).

- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172).

- RealVideo 8/9/10 up to 1080P@60fps.

- Multiple language and multiple format sub-title video support.

- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918).

- Supports JPEG thumbnail, scaling, rotation and transition effects.

- Supports .mkv,.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file

formats.

----------------------------------------------------

Video/Picture Encoding ;

- Independent JPEG and H.264 encoder with configurable performance/bit-rate.

- JPEG image encoding.

- H.265 video encoding up to 1080P@60fps with low latency.

- H.264 video encoding up to 1080P@30fps with low latency.

----------------------------------------------------

- Fast bitblt engine with dual inputs and single output.

- Supports multiple video formats 4:2:0, 4:2:2 and 4:4:4 and multiple pixel formats (8/16/24/32 bits

graphics layer).

- Fast color space conversion.

- Advanced anti-flickering filter.

----------------------------------------------------

Video/Picture CODEC ;

- Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders.

- Support multi-video decoder up to 4x1080P@60fps.

- Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding.

----------------------------------------------------

Generation Advanced Amlogic TruLife Image Engine ;

- Supports Dolby Visionoptional, HDR10+, HDR10, HLG and Technicolor HDR processing.

- Motion compensated noise reduction and 3D digital noise reduction for random noise.

- Block noise, mosquito noise, spatial noise, contour noise reduction.

- Motion compensated and motion adaptive de-interlacer.

- Edge interpolation with low angle protection and processing.

- 3:2/2:2 pulldown and Video on Film (VOF) detection and processing.

- Smart sharpness with SuperScaler technology including de-contouring, de-ring, LTI, CTI, de-

jaggy, peaking.

- Dynamic non-Linear contrast enhancement.

- All dimension multiple regions smart color management including blue/green extension, flesh-

tone correction, wider gamut for video.

- 2 video planes and 3 graphics planes hardware composer.

- Independent HDR re-mapping of video and graphic layer.

----------------------------------------------------

Video Input/Output Interface ;

- Built-in HDMI 2.1 transmitter including both controller and PHY supporting CEC, Dynamic HDR

and HDCP 2.2/2.3, 4K@60 max resolution output.

- CVBS 480i/576i standard definition output.

- Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and

4K.

----------------------------------------------------

Audio Decoder and Input/Output ;

- Supports MP3, AAC, WMA, RM, FLAC, Dolby AudioOptional, DTSOptional and programmable with

7.1/5.1 down-mixing.

- Low-power VAD.

- Built-in serial digital audio SPDIF/IEC958 input/output, and PCM input/output, SPDIF supports

192KHz 16/24/32bit stereo.

- 3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32-

bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch.

- Digital microphone PDM input with programmable CIC, LPF; HPF, support up to 8 DMICs.

- Built-in stereo audio DAC.

- Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S

+PCM.

----------------------------------------------------

Memory and Storage Interface ;

- 32-bit DRAM memory interface with dual ranks and max 4GB total address space.

- Compatible with JEDEC standard DDR3-2133 /DDR3L-2133 /LPDDR3-2133

- Supports SLC/MLC/TLC NAND Flash with 60-bit ECC, compatible to Toshiba toggle mode in

addition to ONFI 2.2.

- SDSC/SDHC/SDXC card and SDIO interface with 1-bit and 4-bit data bus width supporting spec version 2.x/3.x/4.x DS/HS modes up to UHS-I SDR104.

- eMMC and MMC card interface with 1/4/8-bit data bus width fully supporting spec version 5.0

HS400.

- Supports serial 1, 2 or 4-bit NOR Flash via SPI interface.

- Built-in 4k bits One-Time-Programming memory for key storage.

----------------------------------------------------

Network ;

- Integrated IEEE 802.3 10/100M Ethernet MAC with RGMII interface.

- Integrate 10/100M Ethernet PHY interface.

- WiFi/IEEE802.11; Bluetooth supporting via PCIE/SDIO/USB/UART/PCM.

- Network interface optimized for mixed WIFI and BT traffic.

----------------------------------------------------

Integrated I/O Controllers and Interfaces ;

- One USB XHCI OTG 2.0 port.

- One USB SS and PCIE 2.0 combo port up to 5Gbps, which supports 2 configurations:

− 1 USB 2.0 Host + 1 PCIe.

− 1 USB3.0 (No PCIe).

- Multiple PWM, UART, I2C and SPI interface with slave select.

- Programmable IR remote input/output controllers.

- Built-in 10bit SAR ADC with 4 input channels.

- A set of General Purpose IOs with built-in pull up and pull down.

----------------------------------------------------

Power Management ;

- Multiple internal power domains controlled by software.

- Multiple sleep modes for CPU, system, DRAM, etc.

- Multiple internal PLLs for DVFS operation.

- Multi-voltage I/O design for 1.8V and 3.3V.

- Power management auxiliary processor in a dedicated always-on (AO) power domain that can

communicate with an external PMIC.

----------------------------------------------------
